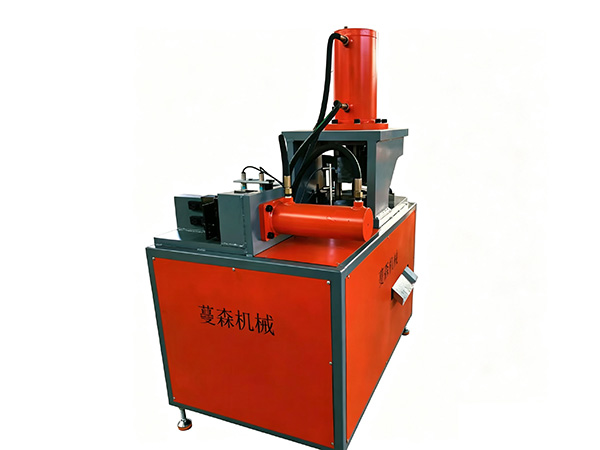

Angle Steel Notching & Bending All-in-one Machine

The Angle Steel Notching&Bending All-in-one Machine is a multifunctional integrated hydraulic processing equipment independently developed for precision forming of angle steel,L-shaped profiles and corner metal materials.It integrates core processes such as automatic fixed-length positioning,precise V-shaped notching,gap cutting and angle bending into one continuous automated workflow,realizing one-time forming of angle steel workpieces without multiple equipment transfer or repeated clamping.This all-in-one processing design effectively solves common industry pain points including low production efficiency,inconsistent notching depth,uneven bending angles,profile torsion and high defective rates in traditional separate processing.Widely applied in solar bracket manufacturing,power fitting production,building steel structure processing,guardrail engineering and mechanical frame fabrication,it has become essential intelligent forming equipment for modern angle steel deep-processing enterprises.

Adopting heavy-duty integral welded steel frame and high-rigidity mechanical structure,the machine maintains stable and vibration-free operation during long-term high-frequency hydraulic processing.Equipped with high-precision servo positioning system and high-stability hydraulic power unit,it delivers accurate positioning and uniform processing force for notching and bending procedures.Professional customized profile positioning fixtures perfectly fit the L-shaped structure of angle steel,firmly clamping workpieces to prevent displacement,distortion and surface scratches during processing.The high-hardness notching dies ensure smooth and neat notching gaps with consistent depth,while the balanced bending structure realizes uniform angle forming without cracking or deformation.The integrated processing mode completely avoids secondary positioning errors,ensuring excellent dimensional accuracy and batch consistency of finished workpieces.

This equipment features outstanding functional diversity and wide material adaptability.It supports processing of carbon steel,galvanized steel and stainless steel angle iron with various side widths and thicknesses.Operators can freely adjust core processing parameters including notching depth,notch spacing,bending angle,forming radian and fixed-length size through the intelligent touchscreen system.The machine flexibly switches between pure notching,pure bending and composite notching&bending modes,capable of producing various angle steel brackets,connection fittings,right-angle supports and special-shaped bent profiles.Multiple groups of processing formulas can be stored and recalled with one click,enabling rapid switching of product specifications and greatly improving production flexibility for standardized and customized orders.

In terms of industrial production efficiency,the fully automatic one-stop workflow greatly optimizes traditional segmented processing procedures.After one-time material loading,the machine automatically completes feeding,precise positioning,precise notching and angle bending,realizing continuous unmanned cyclic production.It effectively eliminates manual transfer and repeated clamping processes,significantly reducing labor costs and shortening production cycles.Built-in material deviation correction and hydraulic overload protection devices effectively prevent profile deformation and processing defects,improving material utilization rate and finished product qualification rate.With stable operating performance,low noise and low failure rate,the equipment fully adapts to long-hour,high-load continuous industrial batch production.

Equipped with a user-friendly CNC touchscreen HMI system,the machine supports digital parameter setting,multi-group formula storage,real-time operation monitoring and automatic production counting.Operators can complete equipment debugging,parameter adjustment and product replacement quickly without professional technical training,effectively reducing workshop technical thresholds and improving overall production efficiency.Comprehensive safety protection mechanisms including emergency stop function,material shortage detection,overload protection and automatic fault alarm ensure safe and stable long-term operation.The modular structural design simplifies daily inspection,die maintenance and wearing part replacement,effectively reducing enterprise operation and maintenance costs.

Angle steel workpieces processed by this machine feature precise notching size,standard bending angle and stable structural performance,with good assembly interchangeability.They are widely used in photovoltaic support frames,electrical power fittings,building steel structures,traffic guardrail accessories and mechanical equipment supporting components.With dual-process integration,high forming precision,strong compatibility and excellent cost performance,the Angle Steel Notching&Bending All-in-one Machine has become a preferred automated processing solution for global metal profile manufacturers,providing efficient,standardized and high-quality one-stop forming support for the modern angle steel processing industry.
