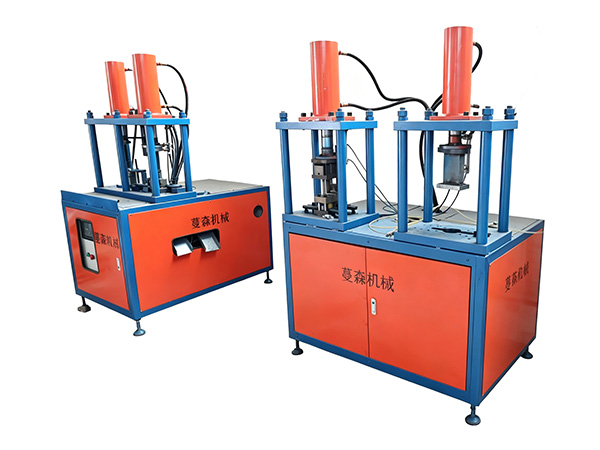

Channel Steel Cutting & Punching Machine

The Channel Steel Cutting&Punching Machine is a multifunctional integrated hydraulic processing equipment designed for automated fixed-length cutting and precision hole machining on U-channel,C-channel and other cold-formed profile steels.Combining two core functions of high-precision cutting and hydraulic punching into one unit,the machine realizes automatic feeding,servo positioning,precise hole punching,profile sizing and fixed-length cutting in a single continuous workflow.It completely changes the traditional discrete processing mode that requires separate cutting machines and punching equipment,effectively solving common industrial problems such as low production efficiency,repeated positioning errors,profile torsion,uneven cutting surfaces and inconsistent batch quality.Widely used in solar bracket manufacturing,building steel structure processing,electrical cabinet frame production,warehouse shelf fabrication and mechanical support component manufacturing,it has become essential intelligent processing equipment for modern profile steel processing enterprises.

The whole machine adopts heavy-duty welded steel frame and high-rigidity structural design,which can effectively resist vibration and pressure impact generated during long-term high-frequency punching and cutting operations.Equipped with a stable hydraulic power system and high-precision servo positioning module,the equipment provides balanced and powerful processing force while maintaining micron-level positioning accuracy.The customized profile clamping and positioning fixture is professionally designed for the structural characteristics of channel steel,which can firmly fix the workpiece to prevent deformation,deviation and surface indentation during processing.The punching unit ensures smooth inner hole walls and burr-free edges,while the cutting unit delivers flat,neat and collapse-free sections.The integrated processing structure eliminates secondary clamping errors and significantly improves the overall dimensional accuracy and batch consistency of finished channel steel products.

This machine features excellent processing flexibility and wide material adaptability.It supports processing of carbon steel,galvanized steel,stainless steel and other common channel steel profiles,covering multiple conventional specifications of profile height,width and wall thickness.Operators can freely adjust core processing parameters such as hole diameter,hole spacing,punching quantity,cutting length and processing speed through the intelligent touchscreen system.The equipment can flexibly switch between pure cutting,pure punching and composite cutting&punching modes,and supports single-row,double-row and staggered multi-hole punching.Different molds can be quickly replaced to complete customized hole position and size processing according to customer drawings.Multiple groups of processing formulas can be stored and recalled with one click,greatly improving production flexibility for diversified and personalized orders.

In terms of industrial production efficiency,the fully automatic one-stop processing mode greatly optimizes traditional multi-step production procedures.After one-time material loading,the machine automatically completes the entire process from feeding,positioning,punching to fixed-length cutting and discharging without manual repeated intervention.It effectively reduces auxiliary working procedures,saves labor costs and shortens production cycles.The built-in material deviation correction system and hydraulic overload protection device effectively avoid processing defects and material waste,significantly improving material utilization rate and finished product qualification rate.With stable operating performance,low noise and low failure rate,the equipment fully adapts to long-hour,high-load continuous industrial batch production,greatly improving factory output and economic benefits.

Equipped with a humanized CNC touchscreen operating system,the machine supports digital parameter setting,formula storage,real-time operation monitoring and automatic production counting.The intuitive operation logic allows ordinary operators to complete equipment debugging and parameter adjustment quickly without professional technical training,effectively reducing workshop technical thresholds and improving overall production efficiency.Comprehensive safety protection mechanisms including emergency stop function,material shortage automatic detection,overload protection and fault self-alarm ensure safe and stable long-term operation.The modular structural design simplifies daily inspection,lubrication and die replacement,effectively reducing enterprise operation and maintenance costs.

Channel steel workpieces processed by this machine feature accurate hole positions,uniform spacing,flat cutting sections and stable overall flatness,which are widely applied in photovoltaic support structures,building steel structures,electrical equipment frames,logistics storage shelves and mechanical equipment supports.With reliable hydraulic performance,high processing precision,strong functional compatibility and excellent cost performance,the Channel Steel Cutting&Punching Machine has become a preferred integrated processing solution for global steel structure manufacturers,providing standardized,high-efficiency and high-quality production support for the profile steel deep-processing industry.
