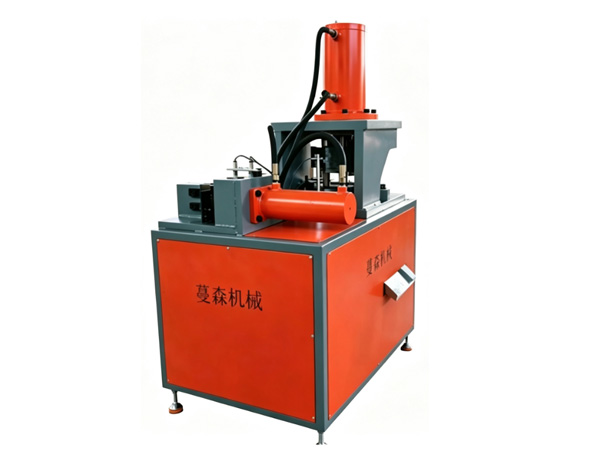

Multi-function Double Station Hydraulic Punching Machine

The Multi-function Double Station Hydraulic Punching Machine is an integrated hydraulic metal processing equipment equipped with two independent working stations,designed for diversified punching,notching and partial forming of flat steel,angle steel,channel steel,pipes and various metal profiles.With separate control and synchronous operation available for the two stations,the machine can process two identical or different workpieces simultaneously,greatly boosting production capacity compared with single-station punching equipment.It effectively addresses common industrial pain points such as low output,single processing function and frequent mold replacement on conventional punching machines.Widely deployed in solar bracket workshops,power fitting factories,construction hardware processing,guardrail component manufacturing and steel structure fabrication plants,it serves as versatile core machinery for multi-specification metal workpiece batch production.

Constructed with heavy-duty integral welded frame,the machine possesses high structural rigidity to resist impact and vibration generated during high-frequency hydraulic punching cycles.Each station is fitted with independent hydraulic power unit and high-precision alloy punching dies,enabling adjustable punching force to suit different material thickness and hardness.Customized quick-change fixtures are available for various profiles,which can firmly clamp workpieces to avoid displacement,warping and indentation during processing.The finished holes feature clean,burr-free edges,consistent aperture and excellent verticality.Dual-station independent design avoids mutual interference during operation,ensuring stable processing precision and reliable batch consistency to satisfy subsequent assembly and welding standards.

This machine delivers outstanding versatility and broad material compatibility.It can process carbon steel,galvanized steel,stainless steel and aluminum profiles,supporting flat bars,angle irons,channel steel and round/square tubes within a reasonable size range.Operators can separately configure key parameters for each station via the touchscreen control system,including hole diameter,hole spacing,punching times and working pressure.The equipment supports multiple processing techniques such as round hole punching,long slot punching,end notching and partial embossing.Different molds can be rapidly swapped to fulfill customized processing requirements according to drawings,and multiple groups of processing programs can be saved for one-click recall,shortening model switching time and improving flexibility for mixed orders.

In terms of production efficiency,the double-station structure realizes parallel processing mode.Two workers can feed workpieces respectively,or one worker can alternately load materials for two stations to keep the hydraulic unit running continuously without idle waiting.This design significantly improves hourly output and reduces unit processing cost.Built-in material deviation correction,hydraulic overload protection and material shortage detection systems automatically trigger alarm and stop under abnormal conditions,lowering scrap rate and raising material utilization.Characterized by stable hydraulic output,low failure rate and long continuous working cycle,the machine perfectly adapts to long-hour,high-volume industrial mass production.

Equipped with intuitive CNC touchscreen HMI,the machine supports independent parameter setting for two stations,program storage,production counting and real-time operating status monitoring.Operators can master basic operation and mold replacement quickly without specialized technical knowledge,lowering the technical threshold on the production site.Comprehensive safety configurations including emergency stop buttons,safety guards and fault self-diagnosis system guarantee safe and stable long-term operation.Modular layout of hydraulic components and molds simplifies daily lubrication,inspection and replacement of wearing parts,effectively cutting later maintenance expenditure for manufacturers.

Workpieces processed by this multi-function double station hydraulic punching machine feature precise dimensional tolerance and neat forming quality,which are widely used in photovoltaic mounting brackets,electrical power fittings,building fasteners,traffic guardrail accessories and mechanical support components.With dual-station high efficiency,multi-functional processing capability,strong adaptability and remarkable cost performance,the Multi-function Double Station Hydraulic Punching Machine is highly recognized by global metal fabrication enterprises,providing flexible,standardized and high-efficiency punching solutions for diversified metal profile processing industry.
