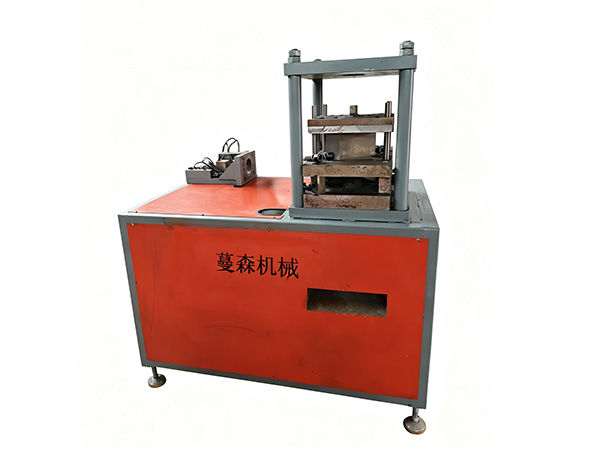

U-channel Punching Machine

The U-channel Punching Machine is a high-precision automatic metal processing equipment dedicated to hole machining on U-channels,C-channels,channel steel and other cold-formed sectional profiles.It integrates automatic feeding,precise positioning,hydraulic or servo punching and automatic unloading into one continuous production workflow,which can complete batch hole processing without repeated manual clamping and alignment.This equipment effectively addresses common drawbacks of traditional separate processing,such as inconsistent hole spacing,hole position offset,profile twisting,low throughput and high reject rate.It is widely adopted in solar bracket manufacturing,electrical cabinet frame production,construction supports,machinery frames and warehouse shelf component processing,serving as essential core machinery for profile deep-processing factories.

Built with a heavy-duty welded integral frame,the machine boasts high structural rigidity to resist vibration and stress deformation generated during punching cycles.It is equipped with stable power units and customized high-hardness punching dies tailored for U-channel cross-section characteristics.Special profile positioning fixtures firmly clamp the U-channel to prevent twisting,collapse and surface indentation under punching force.Each finished hole comes with smooth inner wall and clean edge without burrs.The high-precision positioning system ensures uniform hole pitch and good perpendicularity of holes,making the processed U-channels possess reliable interchangeability and perfectly satisfy downstream assembly and welding requirements.

This punching machine features strong production flexibility and wide material compatibility.It can handle carbon steel,galvanized steel,stainless steel and aluminum U-channels with different specifications of height,width and wall thickness.Operators can adjust key parameters including hole diameter,hole spacing,punching quantity and processing length freely via the touchscreen control system.It supports single-row,double-row and staggered multi-row punching,and different molds can be replaced quickly to realize customized hole patterns according to technical drawings.Multiple groups of processing programs can be saved in the control system and recalled with one click,shortening model changeover time and strengthening the factory’s capacity to fulfill diversified customized orders.

In terms of production efficiency,the fully automatic circulating processing mode greatly optimates conventional multi-step production procedures.Once the U-channel raw material is loaded,the machine automatically executes feeding,positioning,clamping,punching and discharging sequentially,minimizing manual auxiliary work and labor expenditure.Built-in material deviation correction,overload protection and material shortage detection modules can trigger automatic stop and alarm in abnormal conditions,reducing waste caused by misoperation and lifting material utilization and finished product rate.Featuring stable running performance,low noise and low failure rate,the equipment is well suited for long-hour,high-volume industrial mass production.

The machine is fitted with an intuitive CNC touchscreen HMI,supporting digital parameter configuration,program storage,production counting and real-time operation monitoring.Operators can finish equipment debugging and parameter modification rapidly without complicated professional training,lowering the technical threshold for on-site workers.Complete safety configurations such as emergency stop button,safety guard and fault self-diagnosis system guarantee safe and stable long-term operation.The modular layout of power assemblies and molds facilitates daily inspection,lubrication and quick replacement of wearing parts,cutting later maintenance costs for manufacturers.

U-channels processed by this machine feature accurate hole positions,neat punching quality and good overall straightness,which are extensively used in photovoltaic mounting frames,electrical equipment bases,building structural supports,storage rack systems and mechanical assembly frames.With reliable punching power,high positioning precision,wide adaptability and remarkable cost advantage,the U-channel Punching Machine is highly recognized by metal fabrication enterprises worldwide,providing standardized,high-efficiency and dependable hole processing solutions for the sectional profile processing industry.
